AIKO

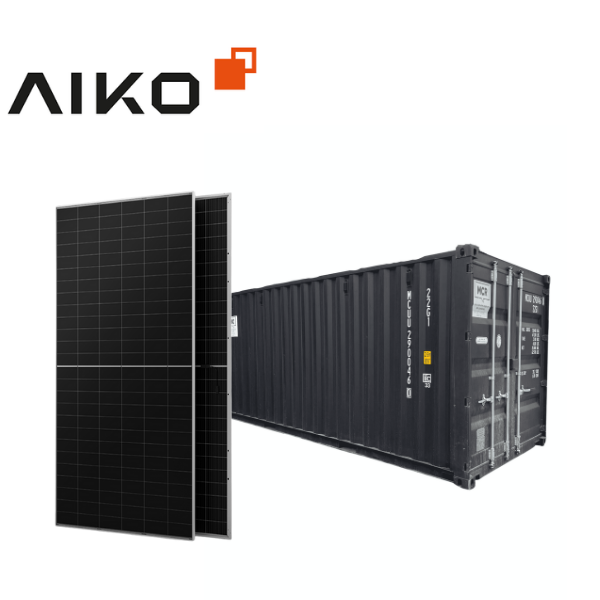

Aiko MAH54MW/470Wp-G2-Neostar 2P Monofacial Black Frame

Aiko MAH54MW/470Wp-G2-Neostar 2P Monofacial Black Frame

€70.795,89
€70.795,89
New Price NOT AVAILABLE
VAT Included.

AIKO Neostar 2P 188 (AIKO-A-MAH54Mw) 450-485W

High-efficiency monocrystalline PERC solar module with 9BB cell technology

Key Specifications

Parameter Value
Power Output Range 450W-485W
Module Efficiency Up to 20.8%
Cell Technology Monocrystalline PERC
Cell Configuration 144 half-cells (72 cells)
Dimensions (L×W×H) 2094 × 1038 × 35 mm
Weight 24.5 kg
Power Tolerance 0 to +5%
Temperature Coefficient -0.35%/°C (Pmax)
Warranty 12-year product, 25-year linear power output

Electrical Characteristics (STC*)

Model Variant Pmax (W) Voc (V) Isc (A) Vmp (V) Imp (A) Efficiency
450W 450 49.6 11.6 41.2 10.9 19.8%
470W 470 50.2 11.9 41.8 11.2 20.5%
485W 485 50.8 12.2 42.4 11.4 20.8%

*STC: AM1.5, 1000W/m², 25°C cell temperature

Mechanical Specifications

  • Front Glass: 3.2mm tempered, anti-reflective coating

  • Backsheet: White, UV-resistant

  • Frame: Anodized aluminum alloy (35mm)

  • Junction Box: IP68 rated, 3 bypass diodes

  • Cable: 4mm², 1000mm length

  • Connectors: MC4 compatible

Performance Data

Parameter Value
NOCT 45±2°C
Operating Temperature -40°C to +85°C
Max System Voltage 1500V DC
Series Fuse Rating 20A
Mechanical Load Capacity 5400Pa (front), 2400Pa (rear)
Hail Resistance 25mm diameter at 23m/s

Temperature Coefficients

Parameter Coefficient
Pmax -0.35%/°C
Voc -0.29%/°C
Isc +0.06%/°C

Certifications

  • IEC 61215

  • IEC 61730

  • ISO 9001

  • ISO 14001

  • CE Mark

  • UL Listed

Packaging Information

Configuration Quantity
Pallet 28 modules
20' Container 392 modules
40' Container 840 modules

Warranty & Reliability

  • Product Warranty: 12 years

  • Power Warranty:

    • Year 1: ≤2% degradation

    • Year 2-25: 0.55% annual degradation

    • Year 25: ≥84.8% of nominal power

  • PID resistant

  • LID <2%

Installation Recommendations

  • Optimal tilt angle: 15-35°

  • Recommended mounting: 4-point fixation

  • Minimum clearance: 10cm for ventilation

Notes

  1. All specifications are based on standard test conditions

  2. Actual performance may vary depending on installation environment

  3. Specifications subject to change without notice
