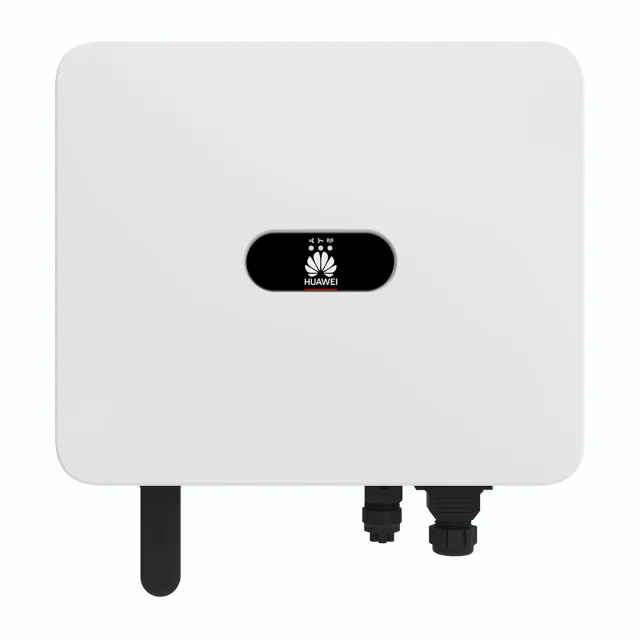

Huawei SUN2000-20K-MB0 inverter

The Huawei MB0 inverter is a three-phase hybrid inverter. It is also designed for use in commercial and industrial photovoltaic systems and is characterized by high efficiency, reliability, and intelligent features. It also offers several very useful features, such as AI-assisted arc fault protection, arc fault localization for faster resolution, and many other useful features.

The inverter has a maximum efficiency of over 98%.

With two MPP trackers, you can make optimal use of solar modules with different orientations and power outputs.

Additionally, the inverter has a built-in Ethernet interface and supports various communication protocols and RS485, allowing easy integration into monitoring and control systems.

Huawei offers a 10-year warranty on the inverter.

Technical data:

• Phase 3
• MPP tracker: 2
• Recommended maximum PV power: 30,000 Wp
• Voltage range: 200V ~ 1000V
• Communication: RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional); EMMA (Optional; available from 30/11/2023)
• Display: LED indicators, Integrated WLAN + FusionSolar APP
• High efficiency of up to 98.4%
• IP66 waterproof
• Cooling: Intelligent air cooling
• Dimensions: 546 x 460 x 228 mm
• Weight 21kg
• Warranty: 10 years
• ZEREZ ID: ZE-KWZS-X8Z1-0002
