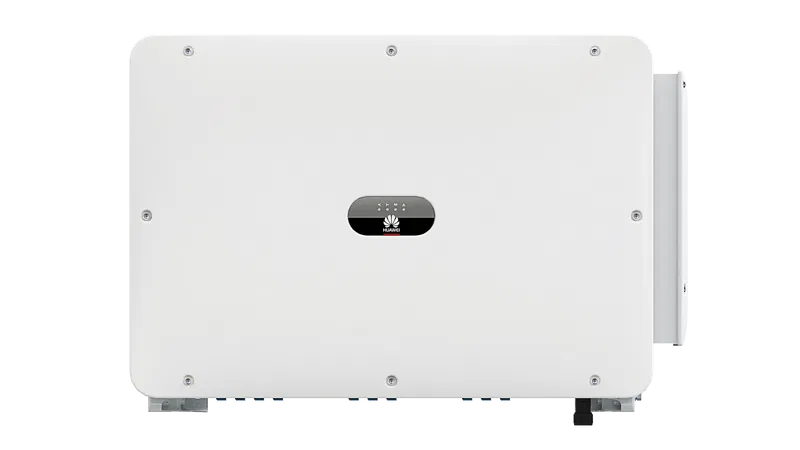

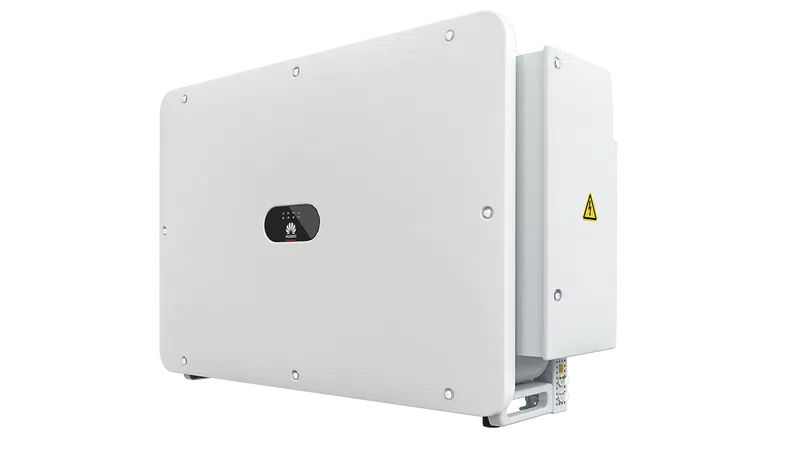

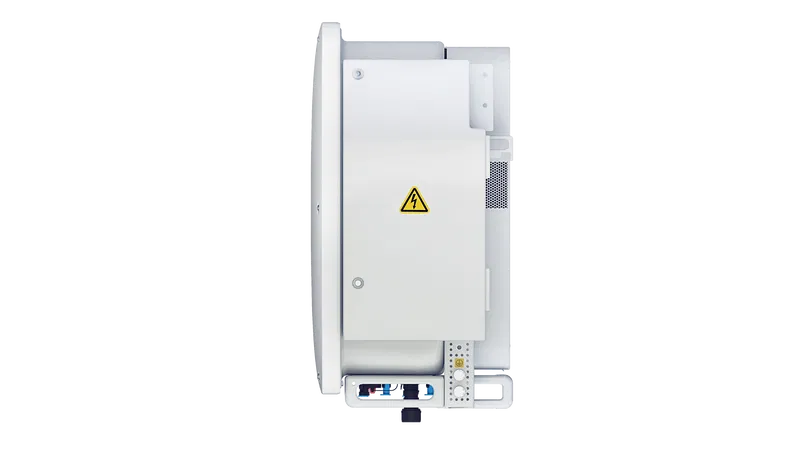

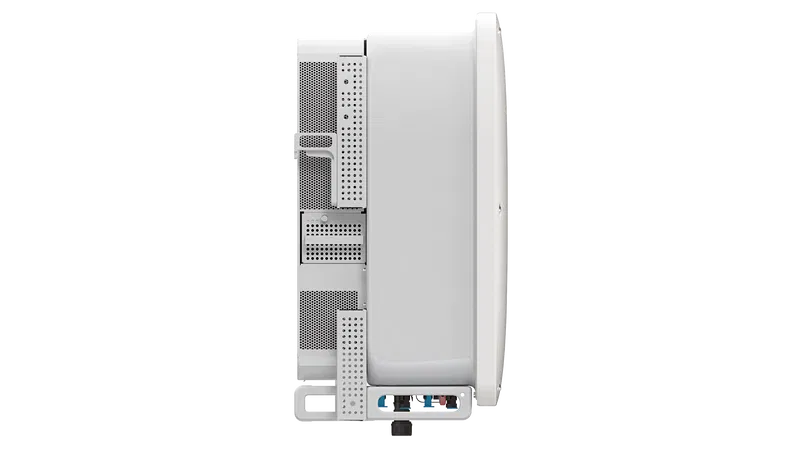

Huawei SUN2000-100KTL-M2(AFCI) inverter
Huawei SUN2000-100KTL-M2(AFCI) inverter
Ordinarie pris
€4.286,25
Ordinarie pris
Försäljningspris
€4.286,25
Skatter ingår.
55 i lager
Kvantitet
Det gick inte att ladda hämtningstillgänglighet
Huawei SUN2000-100KTL-M2(AFCI) inverter
| Technical data | |
|---|---|
| Maximum efficiency | 98.6% at 400V, 98.8% at 480V |
| European efficiency | 98.4% at 400V, 98.6% at 480V |
| Entrance | |
| Max. input voltage | 1,100 V |
| Max. current per MPPT | 30 A |
| Max. current per input | 20 A |
| Max. short-circuit current per MPPT | 40 A |
| Starting voltage | 200 V |
| MPPT operating voltage range | 200 V ~ 1,000 V |
| Number of MPP trackers | 10 |
| Max. number of inputs per MPP tracker | 2 |
| Exit | |
| Nominal AC active power | 100,000 W |
| Max. AC apparent power | 110,000 VA |
| Max. AC active power | 110,000 W |
| Nominal AC mains frequency | 50 Hz / 60 Hz |
| Rated output current | 144.4A at 400V, 120.3A at 480V |
| Max. output current | 160.4A at 400V, 133.7A at 480V |
| Protection | |
| Input-side shutdown device | Yes |
| Protection against island formation | Yes |
| AC overcurrent protection | Yes |
| DC reverse connection protection | Yes |
| PV array string fault monitoring | Yes |
| DC surge arrester | Type II |
| AC surge arrester | Type II |
| DC insulation resistance detection | Yes |
| Residual current monitoring unit | Yes |
| Arc fault protection | Yes |
| Smart String Level Separator | Yes |
| communication | |
| LED indicators on the display; WLAN adapter + FusionSolar APP | |
| RS485, USB | |
| Smart dongle-4G Smart dongle - 4G / WLAN (optional) | |
| Monitoring BUS (MBUS) Yes (isolation transformer required) | |
| General data | |
| Dimensions (W x H x D) | 1,035 x 700 x 365 mm |
| Weight (with mounting plate) | ≤93 kg |
| Operating temperature range | -25°C ~ 60°C |
| Cooling method | Intelligent air cooling |
| Max. operating height | 4,000 m |
| Relative humidity | 0 ~ 100% |
| Protection class | IP66 |
| Power consumption at night | < 3.5 W |
| Further technical information can be found in the attached data sheet |
