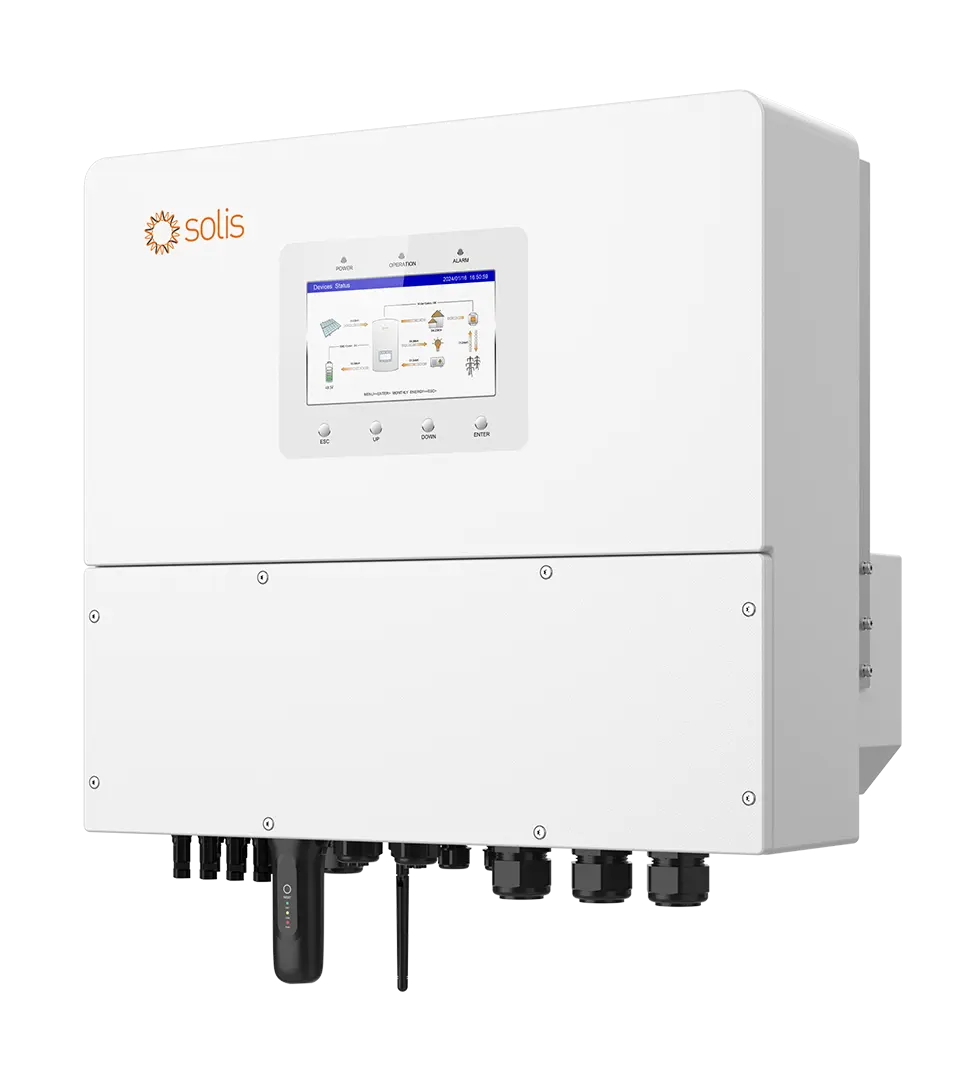

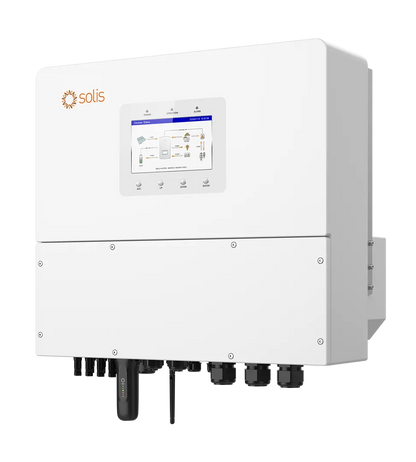

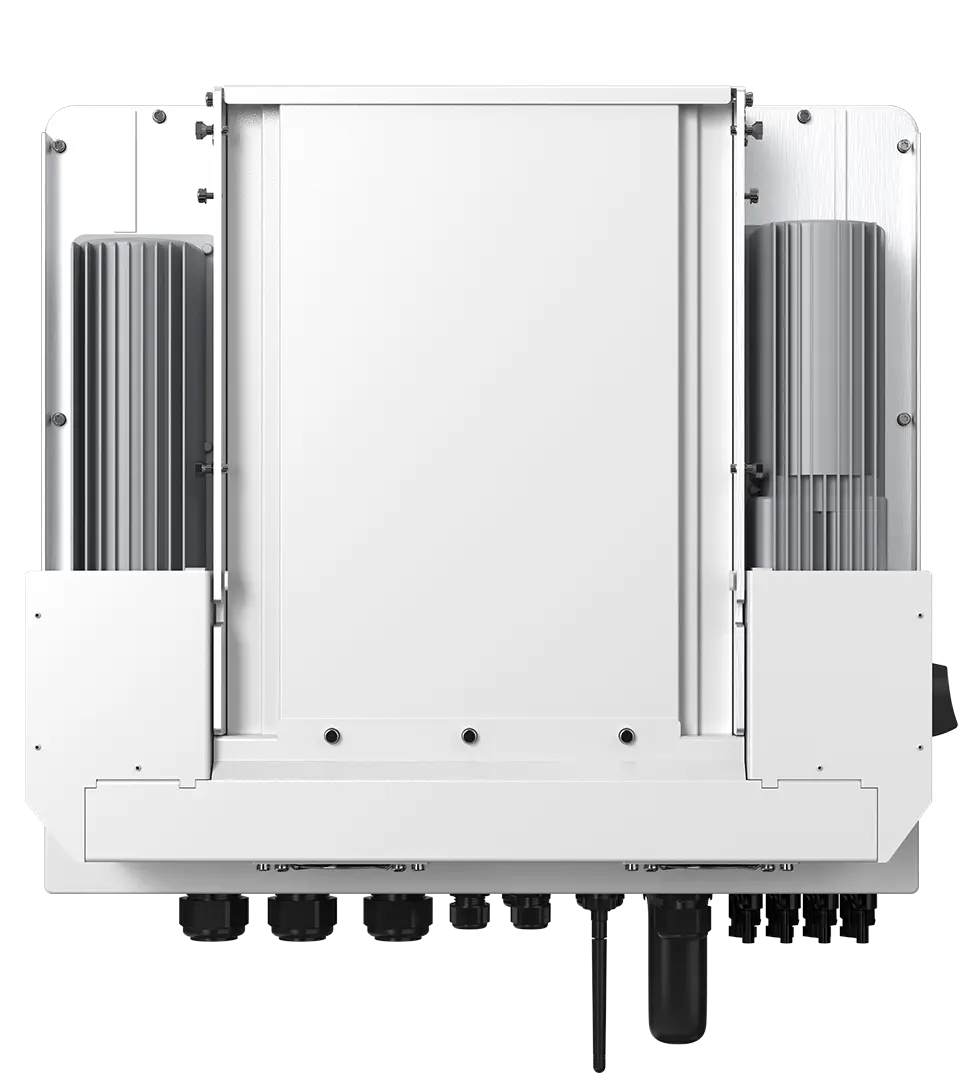

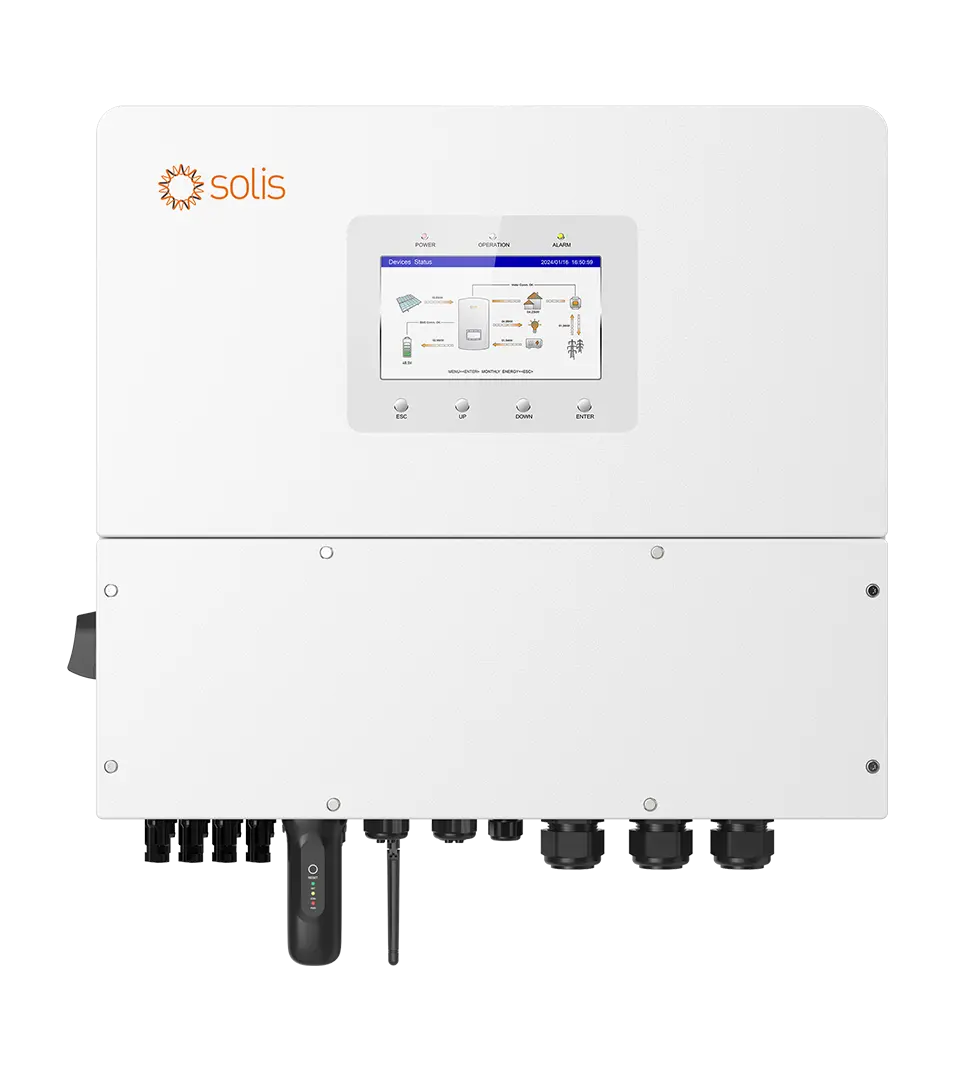

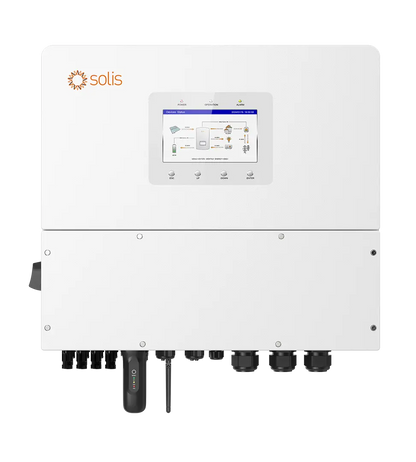

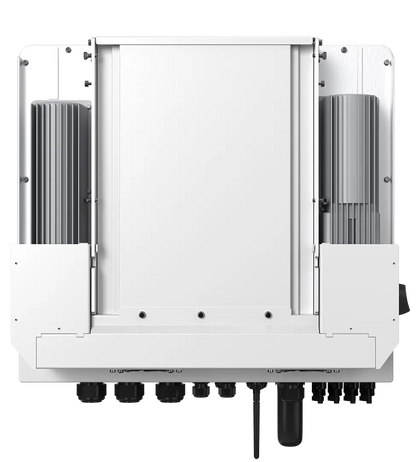

S6-EH3P20K-H

Three Phase High Voltage Energy Storage Inverter

Description

S6-EH3P(12-20)K-H series three-phase energy storage inverter, suitable for large residential and small commercial PV energy storage systems. This series of products support generator networking and parallel operation of multiple inverters; 4 MPPT design, is perfect for large rooftop PV energy storage systems with more roof orientation and complex structure. Products with multiple flexible load capacity, including UPS level switching; 10second 200% surge power backup overload capability, and adapt to three-phase unbalanced load，half-wave load, more friendly and reliable power supply for the load.

Leading Features

• SG heat pump compatibility

• Supports peak shaving features

• Generator-compatible to extend backup duration during grid power outage

• Supports dual backup ports for intelligent control of critical and non-critical loads

• Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port Prelimi

• Supports a maximum input current of 20A, making it ideal for all high-power PV modules of any brand

• Supports AC voltage detection of grid and generator output to prevent damage to generators from reverse current from the grid
