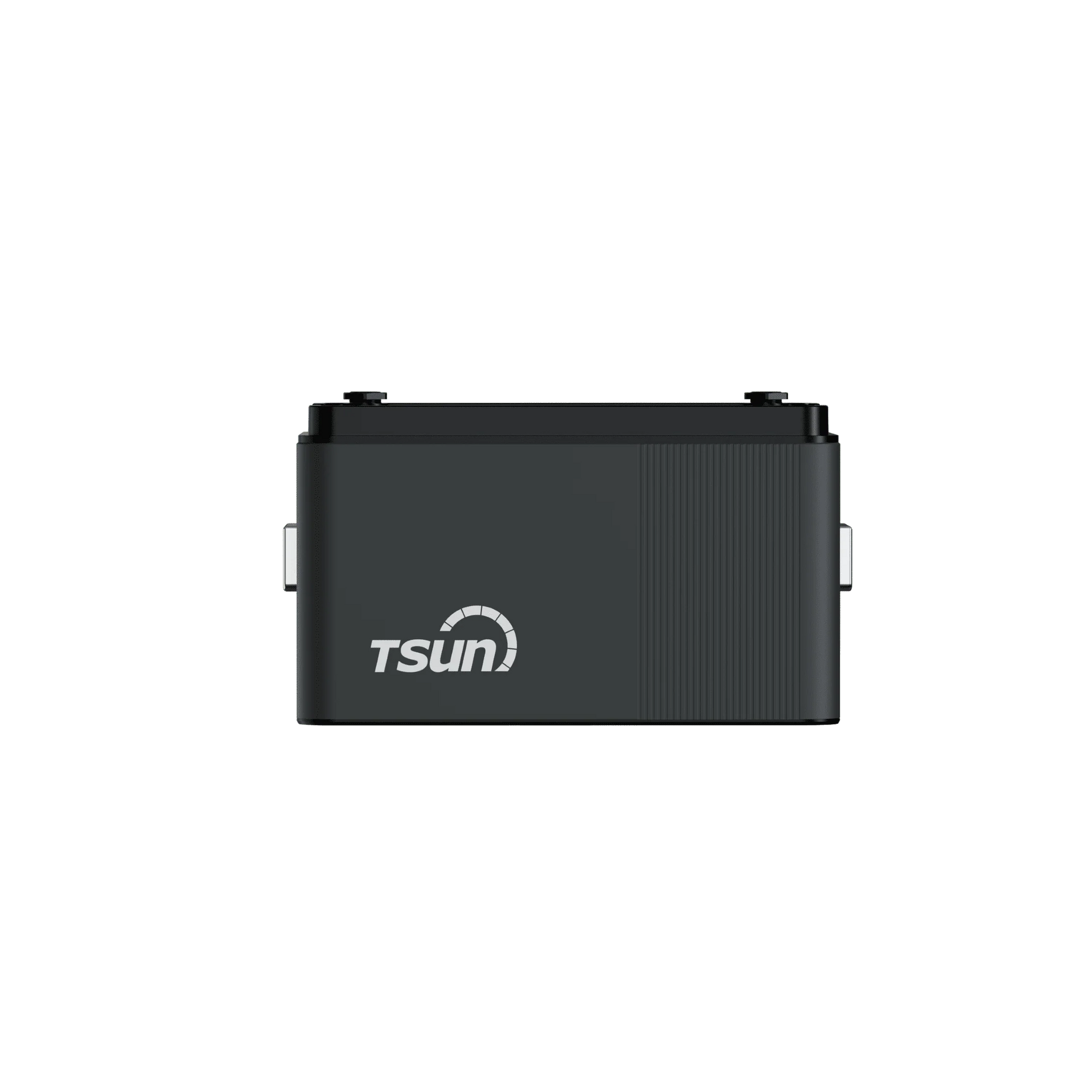

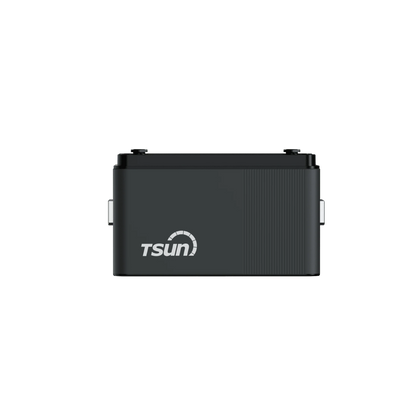

TSun TSOL-DCU1000 Plug-and-Play AIO

Description

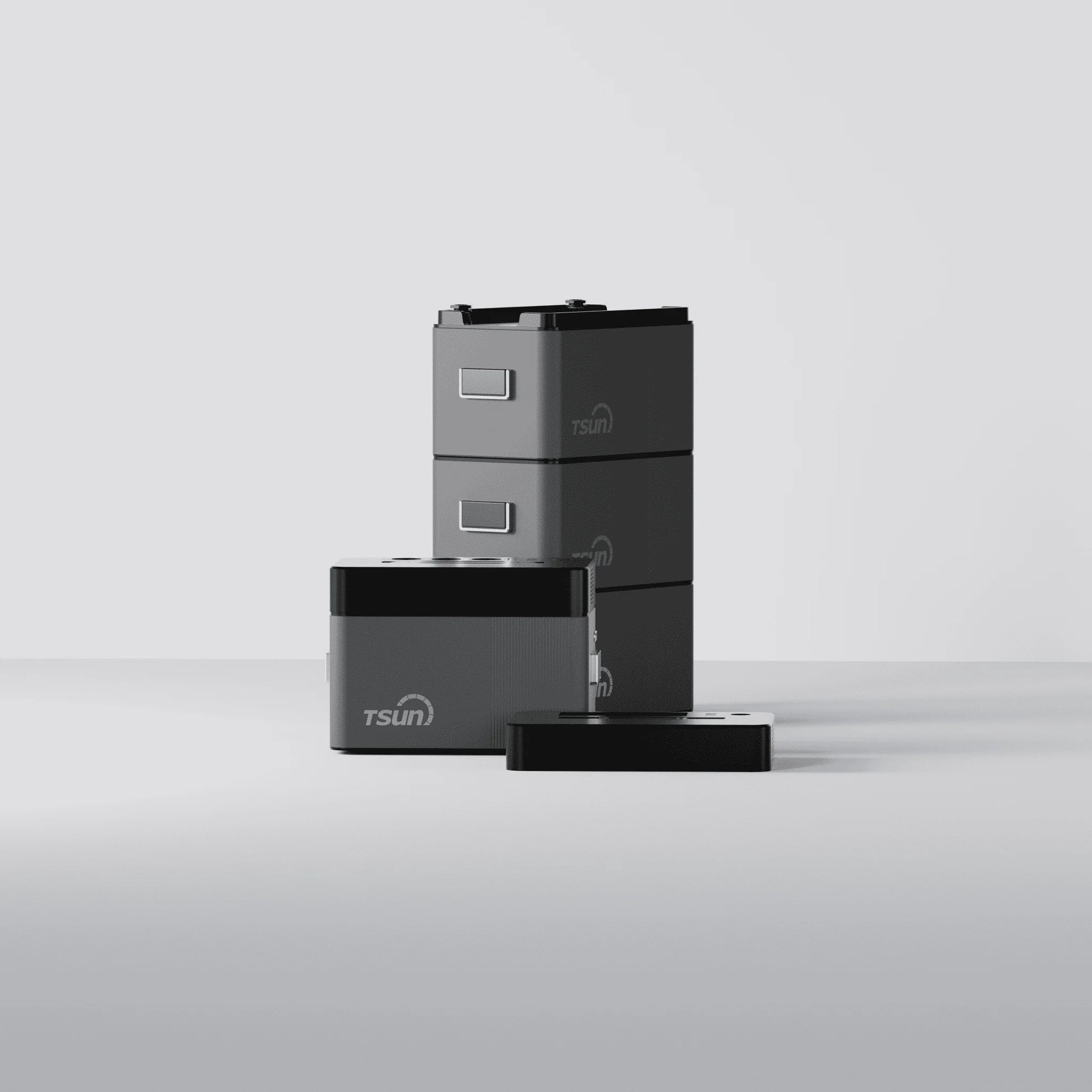

DC Coupled Unit (DCU) is one of the plug and play storage system which designed for end-users. DC Coupled Unit, which is connected between solar modules and balcony microinverter, can store excess electrical energy in the battery and discharge it when needed. This solution, Solar Module + DCU+ Balcony Microinverter, is typically used as a micro energy storage solution for small household, conventional balconies, courtyards, family carports, and other plug & play scenaories.

Technical Specifications:

DCU1000
Capacity (Wh): 1024
Dimensions (LxWxH) [mm]: 330*210*195
Weight (kg): 11
Battery: LiFePO4
Life cycle: 6000 Cycles, Remaining Capacity ≥ 70%
Input voltage (V): 18-55
Maximum Input Current (A): 15
Maximum Input Power (W): 1200
Maximum Output Power (W): 800 (1000 Optional)
Output voltage range (V): 20-50
Maximum System Capacity (Wh): 5120
Protection: IP65
Operating Temperature (°C): -20~60 (Smart Battery Heating Module)
P1000
Dimensions (LxWxH) [mm]: 330*210*60
Weight (kg): 2.5
Input voltage (V): 42-58 (Rated 48)
Noise level (dB): ≤55
AC Output Voltage (V): 220 ~240
Nominal output frequency (Hz): 50 / 60
Maximum PV input power (W): 600
AC Output Power (W): 1000
Output Connector: AC(220V)*3 / USB(5V2A)*2
Input port: PV(XT60)*1

Datasheet Download
